This guide walk you through a working SAML implementation in Go with Okta.

Code Repository

I have pushed the code into my GitHub Repository. You can find it here:

GitHub - alexlogy/sample-okta-authentication: Sample Okta Authentication Application
Sample Okta Authentication Application. Contribute to alexlogy/sample-okta-authentication development by creating an account on GitHub.
GitHubalexlogy

What will we build

We will build the following components in Go:

  • SAML Login with Okta
  • Attributes Extraction
  • Protected Routes
  • Logout

Architecture Overview

We will be implementing SP-initiated SAML authentication flow for our sample app.

SP-Initiated SAML Flow

SAML Authentication Flow for the sample App

Tech Stack

We will be using the following tech stack:

How it works

You can refer to the code in the repository to understand more. I will just explain briefly on the different part of the SAML authentication process.

SAML Middleware

We use the SAML library for go to implement our middleware. When we initialize the instance, it will take in the private key and certificate, IdP metadata and ACS URL.

func Saml(cfg *models.Config) (*samlsp.Middleware, error) {
	certFile := cfg.SAMLSPCertFile
	keyFile := cfg.SAMLSPKeyFile
	rootURLValue := cfg.AppURL
	idpMetadataURLValue := cfg.SAMLIDPMetadataURL

	keyPair, err := tls.LoadX509KeyPair(certFile, keyFile)
	keyPair.Leaf, err = x509.ParseCertificate(keyPair.Certificate[0])


	idpMetadataURL, err := url.Parse(idpMetadataURLValue)
	idpMetadata, err := samlsp.FetchMetadata(context.Background(), http.DefaultClient, *idpMetadataURL)

	rootURL, err := url.Parse(rootURLValue)

	samlSP, err := samlsp.New(samlsp.Options{
		URL:         *rootURL,
		Key:         keyPair.PrivateKey.(*rsa.PrivateKey),
		Certificate: keyPair.Leaf,
		IDPMetadata: idpMetadata,
	})

	return samlSP, nil
}

Defining Routes

These are the routes defined for our sample application.

router.GET("/", func(c *gin.Context) {
    // Return JSON response
    c.JSON(http.StatusOK, gin.H{
        "message": "welcome to okta-authentication app",
    })
})

// SAML routes
router.GET("/saml/metadata", gin.WrapH(samlSP))
router.POST("/saml/acs", gin.WrapH(samlSP))
router.GET("/saml/sso", gin.WrapH(samlSP))
router.GET("/signout", middleware.SignOut(samlSP, cfg))

Protecting Routes with Middleware

We then simulate protected routes with Gin Framework and configured it to use the SAML middleware by CrewJAM.

protected := router.Group("/user")
protected.Use(middleware.SamlMiddleware(samlSP))
{
    protected.GET("/info", controller.GetUserInfo)
}

Extract User Attributes from SAML Assertion

We then extract the attributes from Okta.

func GetCurrentUser(c *gin.Context) (*models.User, error) {
	// debug saml attributes
	ctx := c.Request.Context()

	slog.Info("resolved SAML attributes",
		"name_id", samlsp.AttributeFromContext(ctx, "name_id"),
		"email", samlsp.AttributeFromContext(ctx, "email"),
		"firstName", samlsp.AttributeFromContext(ctx, "firstName"),
		"lastName", samlsp.AttributeFromContext(ctx, "lastName"),
		"phone", samlsp.AttributeFromContext(ctx, "phone"),
	)

	email := samlsp.AttributeFromContext(c.Request.Context(), "email")
	if email == "" {
		slog.Warn("user not authenticated")
		return nil, fmt.Errorf("user not authenticated")
	}

	return &models.User{
		FirstName: samlsp.AttributeFromContext(c.Request.Context(), "firstName"),
		LastName:  samlsp.AttributeFromContext(c.Request.Context(), "lastName"),
		Email:     email,
		Phone:     samlsp.AttributeFromContext(c.Request.Context(), "phone"),
	}, nil
}

Implement Logout Function

We also implemented a logout function to delete local session then redirect to Okta signout URL.

func SignOut(samlSP *samlsp.Middleware, cfg *models.Config) gin.HandlerFunc {
	return func(c *gin.Context) {
		if samlSP == nil {
			slog.Error("SAML middleware not initialized for signout")
			c.AbortWithStatusJSON(http.StatusInternalServerError, gin.H{
				"error": "SAML middleware is not initialized",
			})
			return
		}

		if err := samlSP.Session.DeleteSession(c.Writer, c.Request); err != nil {
			slog.Error("failed to delete local SAML session", "error", err)
			c.AbortWithStatusJSON(http.StatusInternalServerError, gin.H{
				"error": "failed to sign out",
			})
			return
		}

		if cfg != nil && cfg.LogoutURL != "" {
			oktaLogoutURL := cfg.LogoutURL + "/login/signout?fromURI=" + cfg.AppURL
			slog.Info("redirecting to logout URL: " + oktaLogoutURL)
			c.Redirect(http.StatusFound, oktaLogoutURL)
			return
		}

		slog.Info("logout URL not configured, redirecting to root")
		c.Redirect(http.StatusFound, "/")
	}
}

URL to be used to logout from Okta

https://your-okta-domain/login/signout?fromURI=http://localhost:8080

How to RUN the Sample App

Next, we will try to run the sample app from the repository.

Project Structure

├── routes/
│   └── routes.go
├── config/
│   └── config.go
│   └── validator.go
├── middleware/
│   └── saml.go
├── models/
│   └── users.go
│   └── config.go
├── controllers/
│   └── user.go
├── config.json
├── main.go
├── go.mod
├── DockerFile

Clone the code repository

Clone the code repository into your local environment

git clone https://github.com/alexlogy/sample-okta-authentication

Generate Self-Signed Certificates

SAML will require certificates for signing and encryption. We have to generate the certificates using openssl.

openssl req -x509 -newkey rsa:2048 \
-keyout sample-app.key \
-out sample-app.crt \
-days 365 -nodes \
-subj "/CN=localhost"

Convert the CRT file into PEM format for use in Okta Admin Portal later.

openssl x509 -in sample-app.crt -outform PEM -out sample-app.pem

Creating a SAML App in Okta

  1. Login into your Okta Admin Console
  2. Go to Applications -> Applications
  3. Click Create App Integration
  4. Select SAML 2.0
  5. Give it a Name and click Next

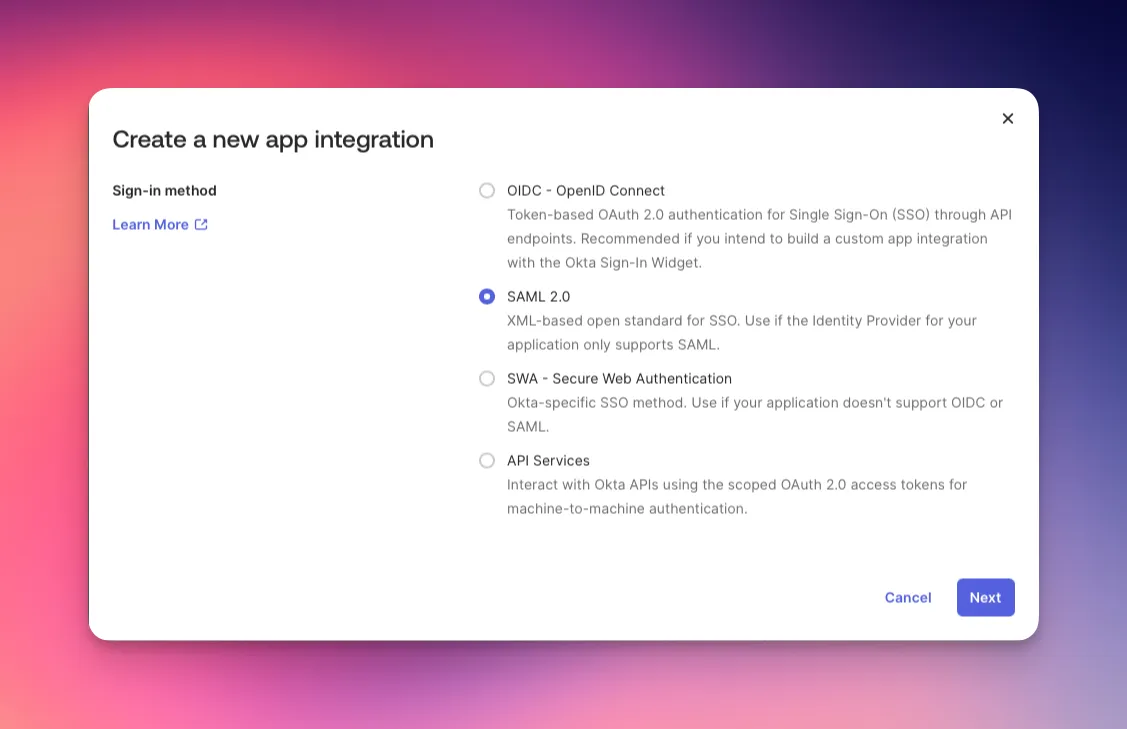

Create SAML 2.0 App Integration in Okta

Configure SAML Settings

  1. Configure the following fields in SAML Settings:
    1. Single sign-on URL: http://localhost:8080/saml/acs
    2. Audience URI (SP Entity ID): http://localhost:8080/saml/metadata
    3. Name ID format: EmailAddress
    4. Application username: Okta username
    5. Update application username on: Create and update
    6. Assertion Encryption: Encrypted
    7. Upload the pem certificate created earlier into Encryption Certificate and Signature Certificate
    8. Click Next

Configure Attribute Statements

  1. Next, go to your created Application and click Sign On tab.
  2. Scroll down to Attribute statements and map your attributes.
    1. Refer to Okta Admin Console -> Directory -> People -> Your Name -> Profile to see the available attributes. Your attributes might differ if you're using federation with Active Directory, etc.

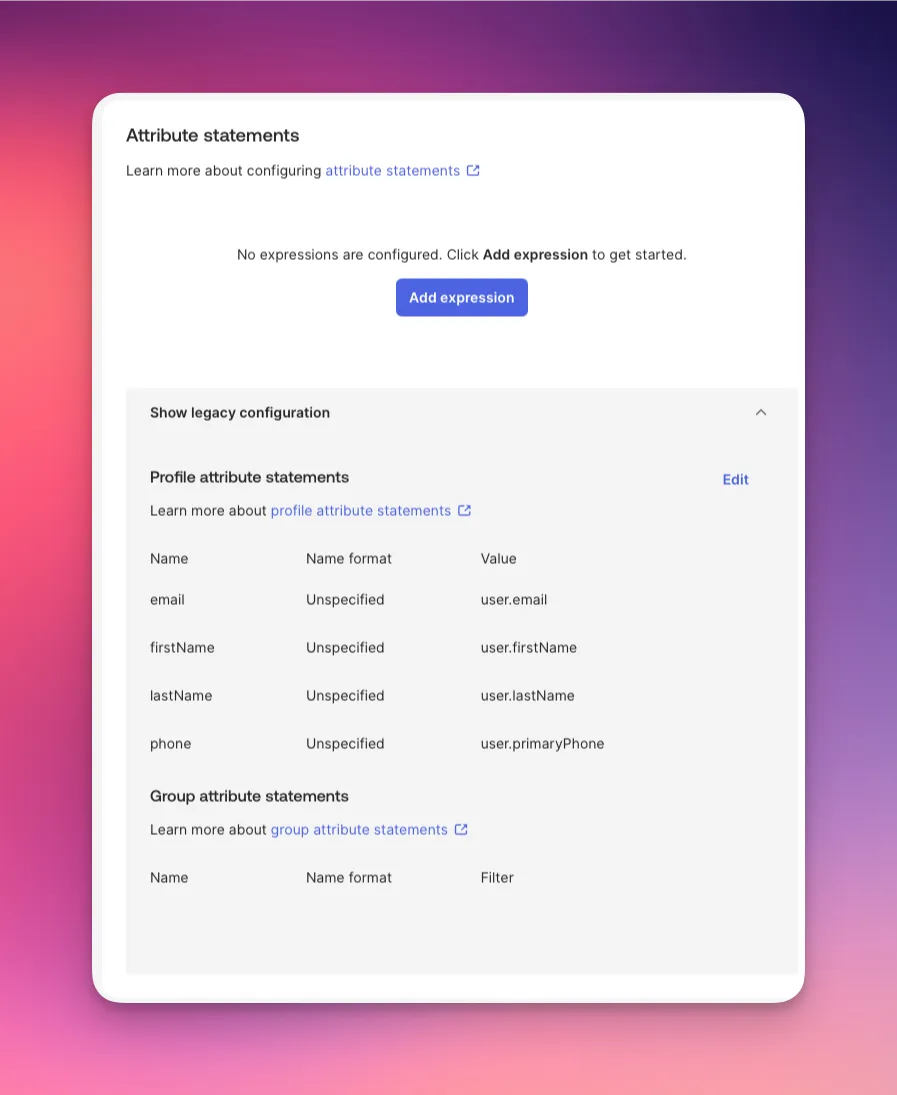

Attribute Statements in Okta App Integration
Important! If you skip this step, your app gets empty attributes and the authentication might fails.

Obtain Okta SAML 2.0 Metadata

Once you have configured the above, you should be able to see the SAML metadata of the configured app.

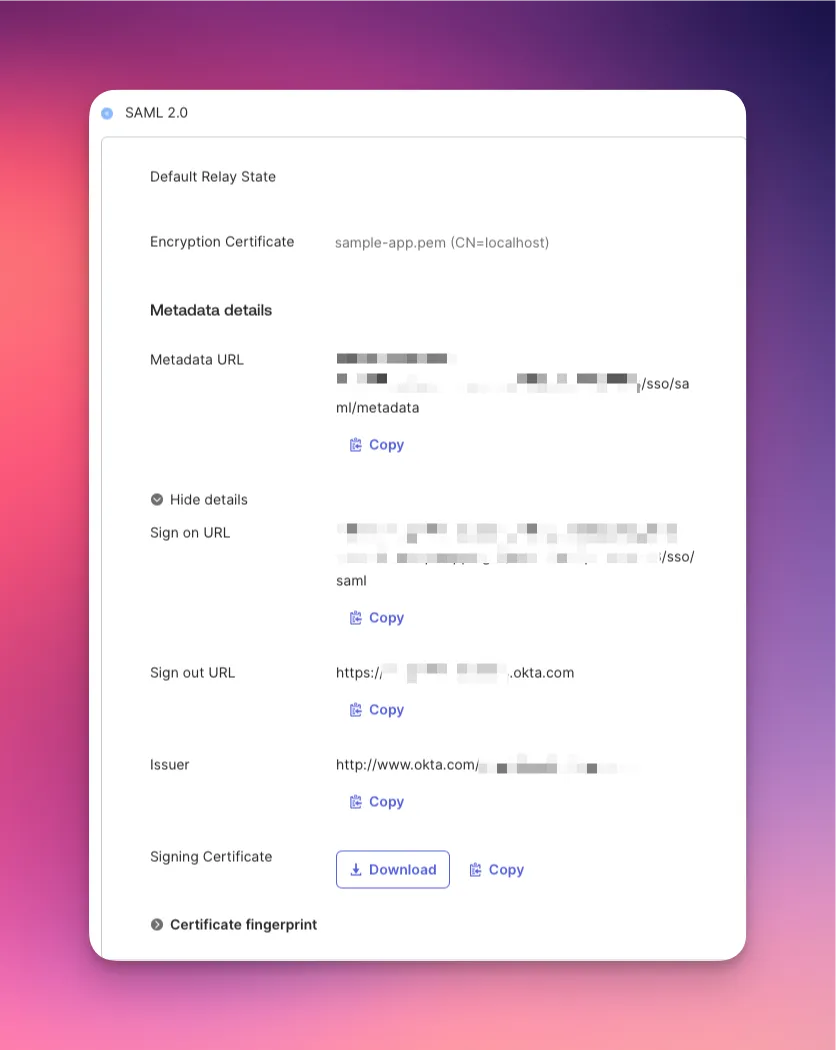

SAML Metadata Details for Okta App

Configure the Go App

The configuration for the app is defined in config.json.

{
  "app_url": "http://localhost:8080",
  "saml_idp_metadata_url": "https://xxxx.okta.com/app/xxxx/sso/saml/metadata",
  "saml_sp_cert_file": "sample-app.crt",
  "saml_sp_key_file": "sample-app.key",
  "logout_url": "https://xxxx.okta.com"
}

Replace the respective information with the metadata information you get from Okta App integration above.

Build the Docker Image

We will then build the docker image. I'm using podman on my Mac, it's the same command with docker if you're using Docker Desktop.

podman build -t sample-okta-app .

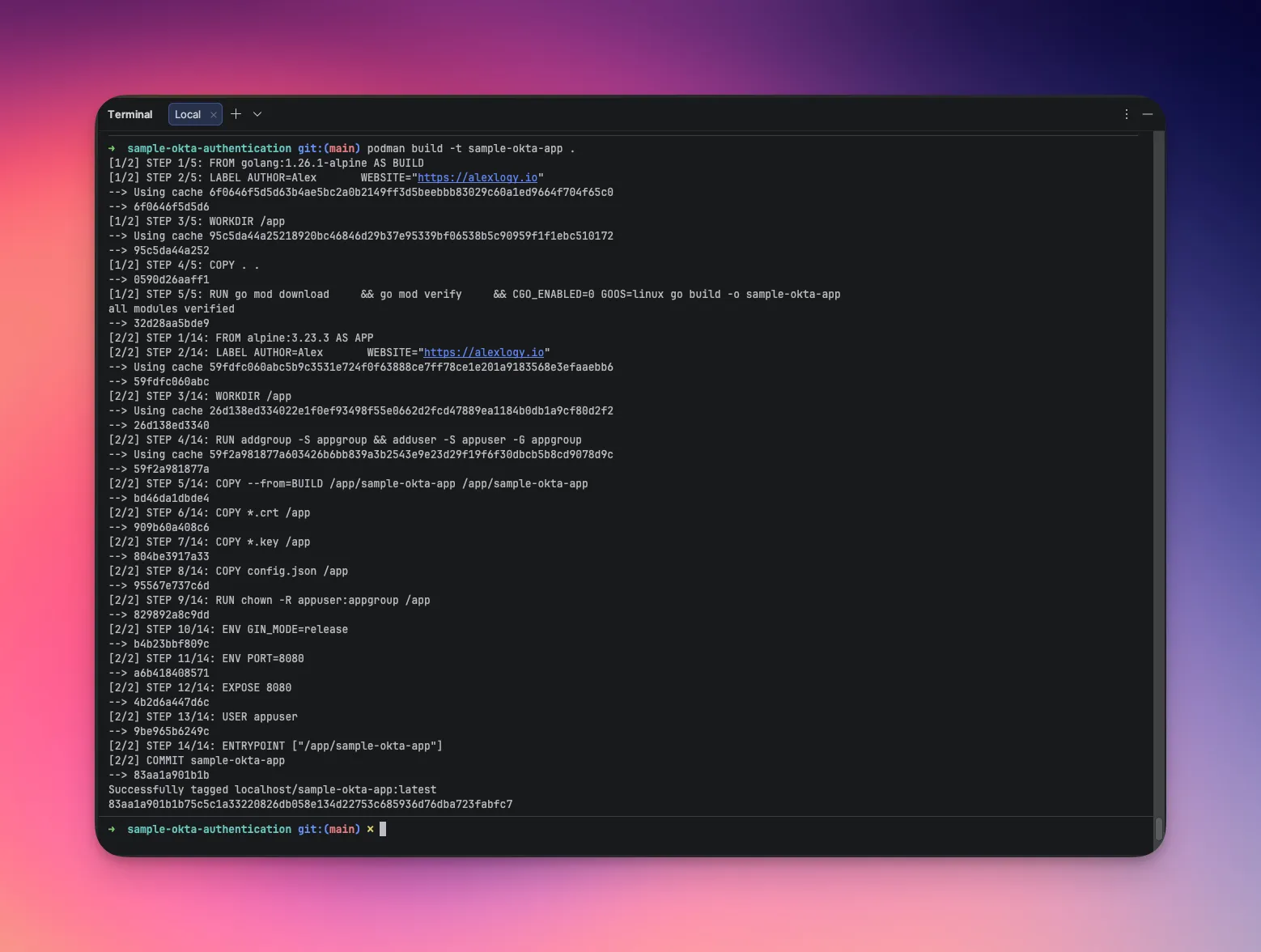

Building the Docker Image for the Sample App

Run the container

We will then run the container.

podman run -p 8080:8080 sample-okta-app

Open the URL in Browser

Open the URL in browser to access the web application.

http://localhost:8080
Root path of the Sample App

Access Protected Path in Sample App

We will then try to access protected path in the web application.

http://localhost:8080/user/info

It should redirect you to Okta for authentication.

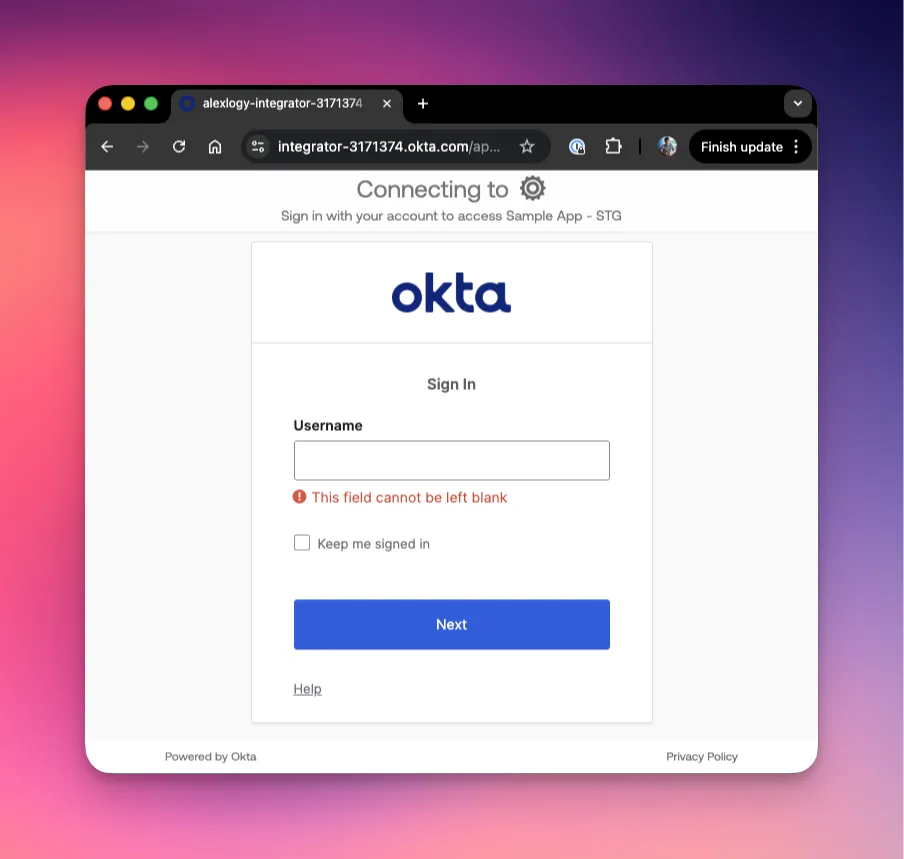

Sample App redirect User to Okta for Authentication

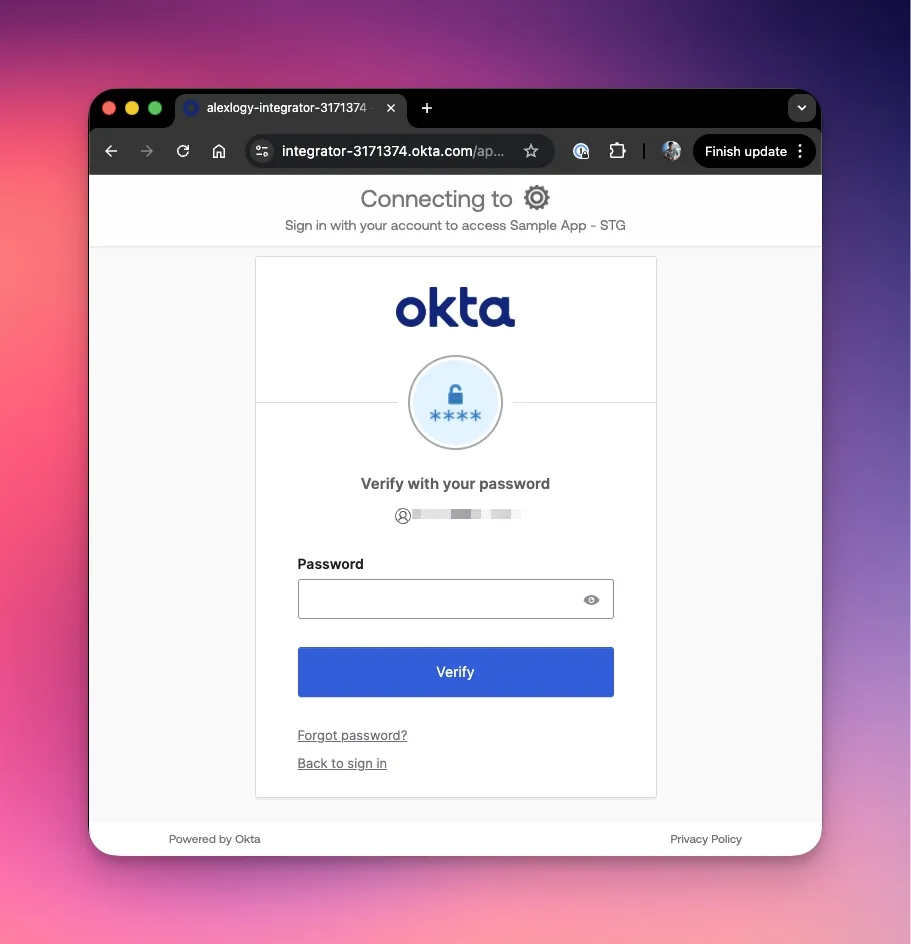

Okta requesting authentication for User's Identity

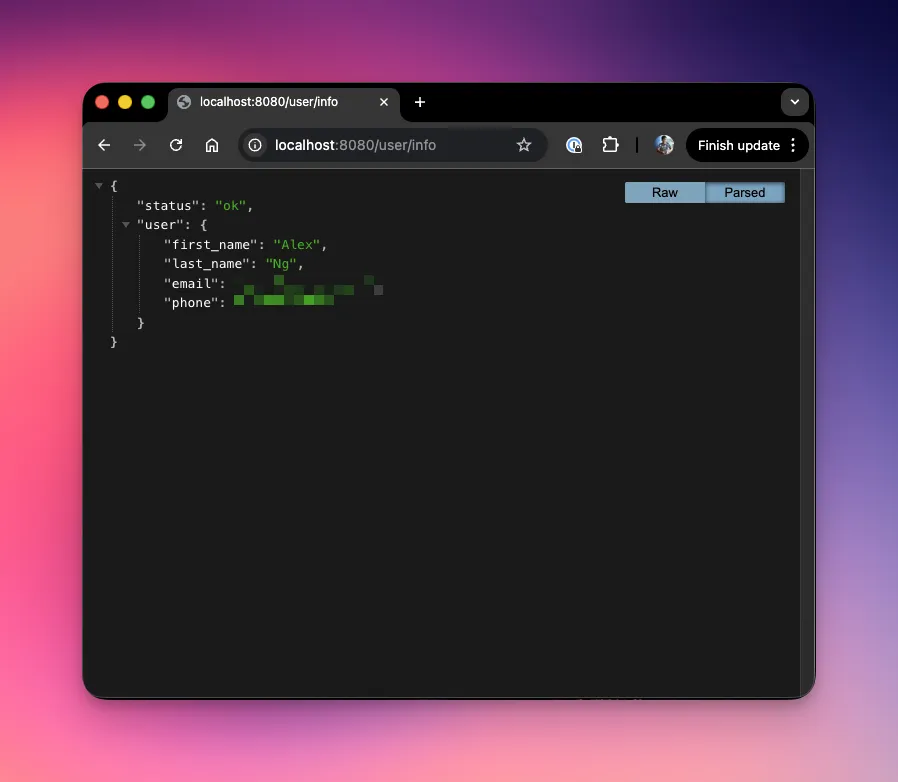

Once you're fully authenticated, Okta will redirect you back to the protected resource.

Final Thoughts

SAML authentication is not inherently complex. Most failures don't come from code but from configuration errors between the Service Provider and the Identity Provider. Errors can include:

  • Incorrect ACS URL
  • Missing Attributes
  • Mismatched Audiences
  • Etc

Once you internalize the flow, everything becomes easy. Refer to my previous post on "How SAML Authentication Works" to read about it again if you wish!
